Floor Plans, Elevations and Sections Explained: Understanding the Foundations of Measured Surveys
Floor Plans, Elevations and Sections is a fundamental concept within measured building surveys, forming the core outputs used by architects, engineers, and construction professionals. These drawings translate real-world structures into accurate, scaled representations, enabling informed design, planning, and decision-making across a wide range of projects.
Whether undertaking refurbishment, extension, or redevelopment works, a clear understanding of these drawing types is essential. Each provides a different perspective of a building, and when combined, they deliver a complete picture of its geometry, layout, and structural relationships.

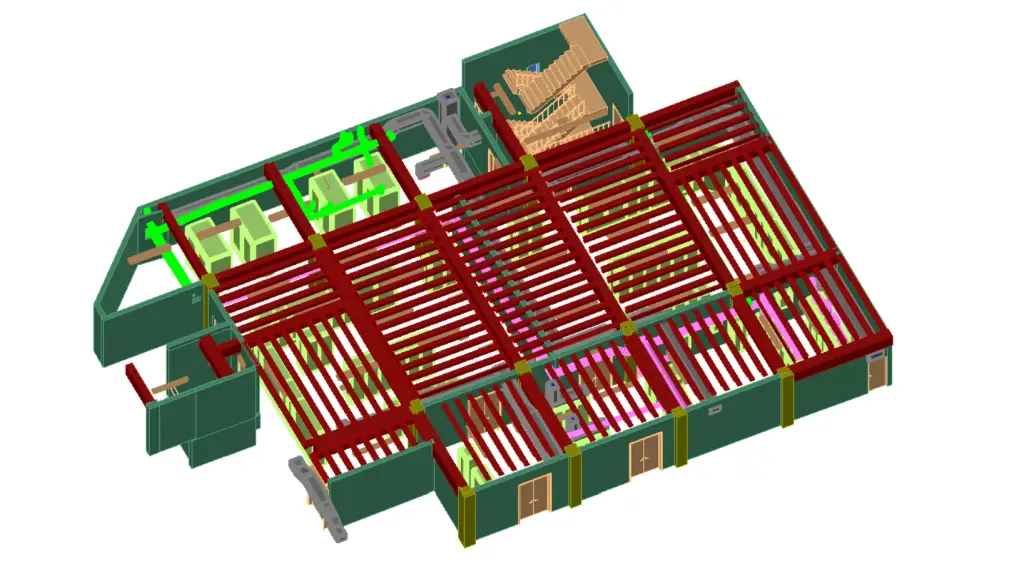

What is a Floor Plan?
A floor plan is a horizontal representation of a building, typically taken at a standard cut height—usually around 1.2 metres above finished floor level. This allows key features such as walls, doors, windows, and structural elements to be clearly illustrated.
Floor plans are primarily used to define layout and functional use. They show how spaces connect, circulation routes, and the positioning of internal features. In measured surveys, floor plans are produced to a high level of accuracy, reflecting the true dimensions and geometry of the building rather than assumed or nominal values.
Key information typically included in floor plans:
- Internal and external wall positions and thicknesses
- Door and window locations
- Room layouts and names
- Structural elements such as columns or beams
- Staircases, lifts, and access points
For refurbishment and design projects, accurate floor plans are critical. Even minor dimensional inaccuracies can lead to design conflicts, particularly where new elements must integrate with existing structures.
What is an Elevation?
Elevations provide a vertical representation of a building’s external or internal faces. Unlike floor plans, which focus on layout, elevations illustrate height, appearance, and architectural detail.
External elevations are often used for planning applications and visual assessments, while internal elevations may be required for detailed design work—particularly in complex or heritage environments.
Typical features shown in elevations include:
- Building height and proportions
- Window and door positions
- External finishes and materials
- Rooflines, parapets, and architectural features
- Changes in level and façade articulation
In measured surveys, elevations are captured to reflect the true condition of the building, including any irregularities such as leaning walls or uneven rooflines. This is particularly important in older or non-standard structures where symmetry cannot be assumed.
What is a Section?
A section is a vertical “cut-through” of a building, revealing internal relationships that cannot be seen in floor plans or elevations alone. Sections are essential for understanding how different levels and elements interact vertically.
By slicing through the building at a defined location, sections expose key structural and spatial information, including:
- Floor-to-ceiling heights
- Floor build-ups and structural depths
- Roof structure and profiles
- Stair and level transitions
- Relationships between internal spaces
Sections are particularly valuable in projects involving multiple levels, complex roof structures, or significant changes in elevation. They provide clarity on how a building is constructed and how different elements align in three-dimensional space.
How These Drawings Work Together
Individually, floor plans, elevations, and sections each provide a limited view. However, when used together, they form a comprehensive representation of a building.
- Floor plans define layout and horizontal relationships
- Elevations illustrate external and internal vertical surfaces
- Sections reveal internal vertical connections and structural composition
This combined approach allows design teams to fully understand both the form and function of a building. It ensures that all aspects—spatial, structural, and visual—are accurately represented and coordinated.
In measured building surveys, consistency across these drawings is critical. All outputs must align geometrically to ensure that dimensions, levels, and features correspond correctly across different views.
The Importance of Accuracy in Measured Surveys
The value of floor plans, elevations, and sections is directly dependent on their accuracy. Inaccurate drawings can lead to:
- Design errors and clashes
- Misaligned structural elements
- Delays during construction
- Increased project costs due to rework
Modern surveying techniques, particularly 3D laser scanning, have significantly improved the accuracy and completeness of these outputs. By capturing millions of data points, surveyors can produce drawings that reflect the true geometry of a building—including irregularities that traditional methods may miss.
This level of precision is especially important in refurbishment, heritage, and complex engineering projects where assumptions cannot be relied upon.
Applications Across Different Project Types
Measured survey drawings are used across a wide range of sectors and project types, including:
- Residential – Extensions, renovations, and property alterations
- Commercial – Office fit-outs, space planning, and redevelopment
- Industrial – Plant layouts, structural assessments, and upgrades
- Heritage – Conservation, restoration, and listed building consent
In each case, floor plans, elevations, and sections provide the foundation for design development, enabling stakeholders to work from a single, accurate source of information.
Reducing Risk Through Accurate Drawing Outputs
Producing high-quality floor plans, elevations, and sections is not simply a technical exercise—it is a critical step in reducing project risk. Accurate drawings enable better coordination between disciplines, clearer communication, and more efficient project delivery.
For clients and project teams, this translates into:
- Improved design confidence
- Fewer site-based surprises
- Reduced rework and cost overruns
- Faster decision-making and approvals
By investing in accurate measured surveys at the outset, projects are set up for success, with reliable data underpinning every stage of the process.
Final Thoughts
Understanding floor plans, elevations, and sections is essential for anyone involved in the built environment. These drawings form the backbone of measured surveys, providing the clarity and accuracy required to design, plan, and deliver projects effectively.
When produced to a high standard, they eliminate uncertainty, support better decision-making, and ensure that design intent aligns with real-world conditions. In an industry where precision is critical, these fundamental outputs remain as important as ever.
